CDRHS 汽车电子耦合电感

CDRHS127
CDRHS127
汽车电子耦合电感

磁屏蔽结构,有较强抗干扰性能

正方形适合高密度贴装

耐大电流及软饱和性能

极小直流电阻

锰、镍配方磁材,使用寿命、电气性能等各方面优于市场同类产品

广泛应用于升降压转化器,笔记本电脑,网络通信设备、照明行业、通信设备、家用电器等

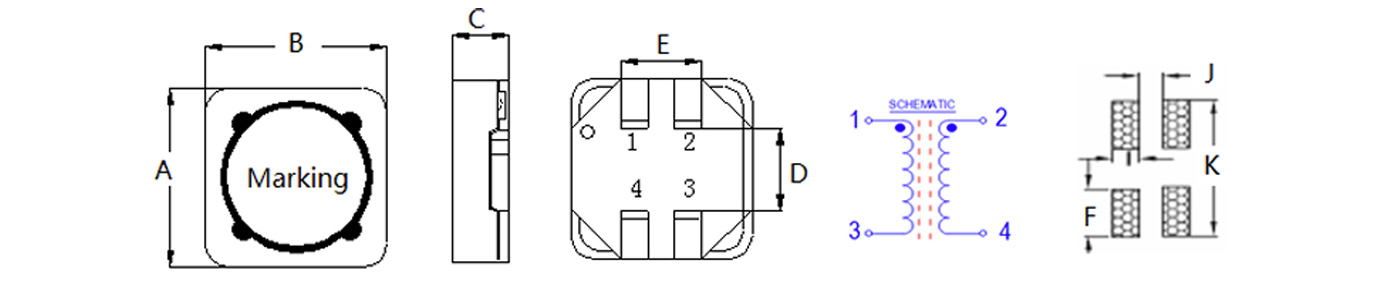

外观尺寸Outline dimension

CDRHS127

外观参数Exterior size / 单位:mm

◆  A:12.0±0.5   ◆  B:12.0±0.5   ◆  C:8.5Max   ◆  D:6.3   ◆  E:5.0   ◆  F:1.7   ◆  J:1.5   ◆  K:12.7

电气特性Electrical / 单位:mm

型号/NO

L/uH

DCR(Ω)

Max

Isat

(Amperes)

Irms

(Amperes)

PDF

CDRHS127-100M:100M
10
61.5
8.0
4.3
CDRHS127-120M:120M
12
62.8
7.5
4.2
CDRHS127-150M:150M
15
71.5
7.1
4.1
CDRHS127-180M:180M
18
82.6
6.8
3.7
CDRHS127-220M:220M
22
91.3
6.5
3.6
CDRHS127-270M:270M
27
110.5
6.2
3.2
CDRHS127-330M:330M
33
131.5
5.8
2.9
CDRHS127-390M:390M
39
145.0
5.6
2.8
CDRHS127-470M:470M
47
157.8
5.4
2.5
CDRHS127-560M:560M
56
201.2
5.0
1.8
CDRHS127-680M:680M
68
215.0
4.5
1.7
CDRHS127-820M:820M
82
220.1
4.0
1.6
CDRHS127-101M:101M
100
265.8
3.8
1.4
CDRHS127-121M:121M
120
268.0
3.5
1.3
CDRHS127-151M:150M
150
284.5
3.2
1.25
CDRHS127-181M:181M
180
310.5
3.0
1.2
CDRHS127-221M:221M
220
330.5
2.7
1.1
CDRHS127-271M:271M
270
560.5
2.3
1.0
CDRHS127-331M:331M
330
1125
1.9
0.85

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%,N表示电感值的公差为±30%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  本产品为无铅,请采用无铅环境作业

■  Other: Our company's products are lead-free, please operate in a lead-free environment.

■  由于页面限制,更多资料请联系我司

■  Due to page limitations, please contact our company for more information

■  在过载电流等不正常条件下,本电感产品无自我保护功能。

■  Under abnormal conditions such as overload current, this inductor product has no self-protection function.

■  贮藏温度:10℃~25℃,相对湿度:65%~85%.

■  Storage temperature: 10 ℃~25 ℃, relative humidity: 65%~85%.
