CDRH 贴片功率电感

CDRH124
CDRH124
贴片功率电感

磁屏蔽结构,有较强抗干扰性能

正方形适合高密度贴装

耐大电流低阻

工作温度:-40℃~+125℃

锰、镍配方磁材,使用寿命、电气性能等各方面优于市场同类产品

主要应用于照明行业、通信设备、计算机行业、安防行业、智能家居行业、家用电器等

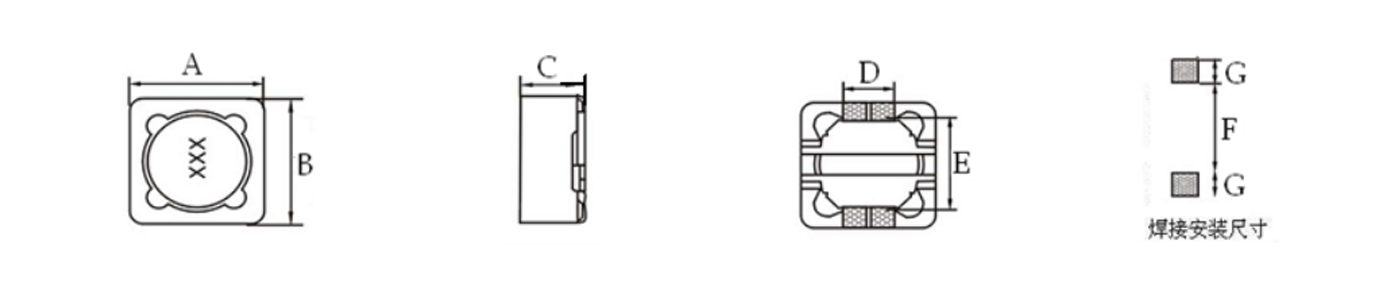

外观尺寸Outline dimension

CDRH124

外观参数Exterior size / 单位:mm

◆  A±0.3:12.0   ◆  B±0.3:12.0   ◆  C(MAX):4.5   ◆  D:5.0   ◆  E:7.6   ◆  F:7.0   ◆  G:2.9

电气特性Electrical / 单位:mm

型号/NO

L/uH

DCR(Ω)

Irms

(Amperes)

Isat

(Amperes)

PDF

CDRH124-4R7N
4.7
0.018
8.00
10.0
CDRH124-6R8N
6.8
0.026
8.5
8.55
CDRH124-100M
10
0.03
8.0
7.00
CDRH124-120M
12
0.038
6.3
6.50
CDRH124-150M
15
0.044
5.9
6.00
CDRH124-180M
18
0.057
4.00
5.55
CDRH124-220M
22
0.068
5.0
5.00
CDRH124-270M
27
0.080
4.5
4.50
CDRH124-330M
33
0.092
4.0
4.00
CDRH124-390M
39
0.13
3.8
3.50
CDRH124-470M
47
0.150
3.6
3.20
CDRH124-560M
56
0.190
3.3
3.00
CDRH124-680M
68
0.220
2.8
2.50
CDRH124-820M
82
0.235
2.6
2.30
CDRH124-101M
100
0.26
2.5
2.20
CDRH124-121M
120
0.30
1.50
2.10
CDRH124-151M
150
0.36
1.95
2.00
CDRH124-181M
180
0.620
1.8
1.65
CDRH124-221M
220
0.700
1.6
1.55
CDRH124-271M
270
0.80
1.45
1.35
CDRH124-331M
330
0.85
1.35
1.20

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
