黄白环电感

TC50-26
TC50-26
磁环电感

高工作频率、损耗小

品质因素高、电感值稳定

低电流噪声有效提升信号传输质量

使用寿命长、耐磨损、能承受恶劣工作环境

广泛应用于车载、电力、冶金等重工业领域

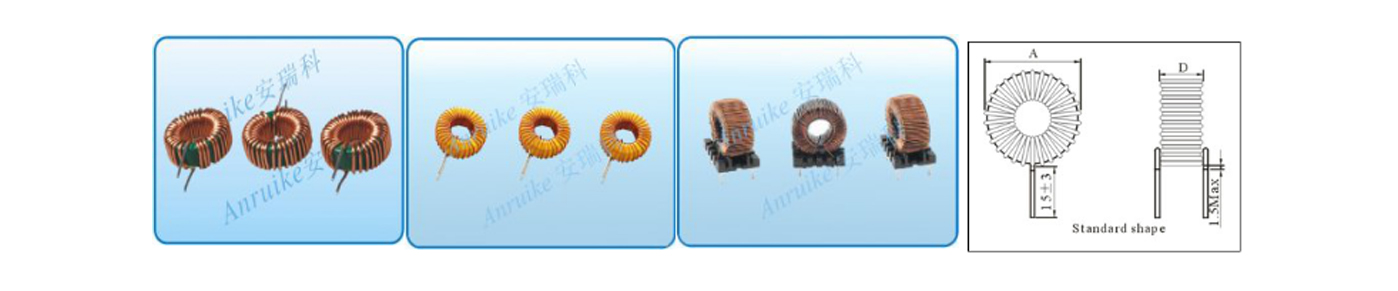

外观尺寸Outline dimension

TC50-26

外观参数Exterior size / 单位:mm

◆  A(MAX):15.5   ◆  D(MAX):7.5

电气特性Electrical / 单位:mm

型号/NO

L/uH

DCR(Ω)

Isat

(Amperes)

Irms

(Amperes)

PDF

TC50-26
20-220
21-14
/
3.0-1.0

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%,N表示电感值的公差为±30%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  本产品为无铅,请采用无铅环境作业

■  Other: Our company's products are lead-free, please operate in a lead-free environment

■  在过载电流等不正常条件下,本电感产品无自我保护功能。

■  Under abnormal conditions such as overload current, this inductor product has no self-protection function.

■  贮藏温度:10℃~25℃,相对湿度:65%~85%.

■  Storage temperature: 10 ℃~25 ℃, relative humidity: 65%~85%

■  由于页面限制,更多资料请联系我司

■  Due to page limitations, please contact our company for more information
