DLQ 超级大电流电感

DLQ2915
DLQ2915
超级大电流电感

组合设计,立式坚固的结构

较大电感值,耐极大电流

扁平线绕组,实现低直流电阻

低磁损耗,低 ERS,小寄生电容

温度上升电流和饱和电流受环境的影响较小

工作温度: -40℃ ~125℃ .

主要应用于大电流的工作环境,如充电桩、工业控制等

外观尺寸Outline dimension

DLQ2915

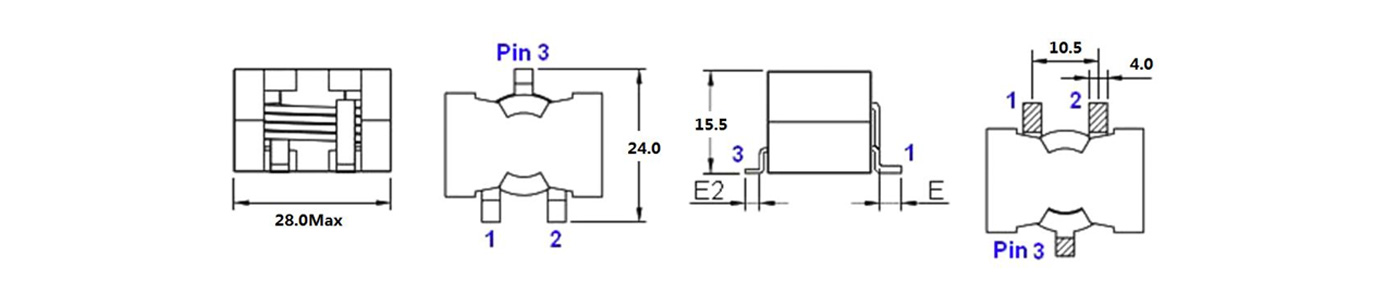

外观参数Exterior size / 单位:mm

◆  尺寸参数详情见上方图片标注:

电气特性Electrical / 单位:mm

型号/NO

L(0A)

DCR(mΩ)

Irms

(Amperes)

Isat

(Amperes)

PDF

DLQ2915-R82M
0.82
0.67
46
190
DLQ2915-1R5M
1.5
1.10
42
180
DLQ2915-2R2M
2.2
2.00
30
155
DLQ2915-3R3M
3.3
2.60
24
115
DLQ2915-4R3M
4.3
3.55
19
105
DLQ2915-5R6M
5.6
4.75
18
90
DLQ2915-7R5M
7.5
5.90
17
80
DLQ2915-100M
10
7.50
15
70

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
