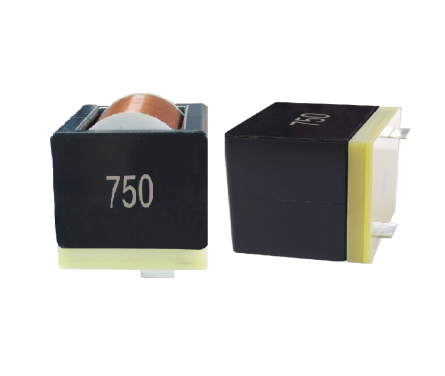

DLQ 超级大电流电感

DLQ2918
DLQ2918
超级大电流电感

组合设计,立式坚固的结构

较大电感值,耐极大电流

扁平线绕组,实现低直流电阻

低磁损耗,低 ERS,小寄生电容

温度上升电流和饱和电流受环境的影响较小

工作温度: -40℃ ~125℃ .

主要应用于大电流的工作环境,如充电桩、工业控制等

外观尺寸Outline dimension

DLQ2918

外观参数Exterior size / 单位:mm

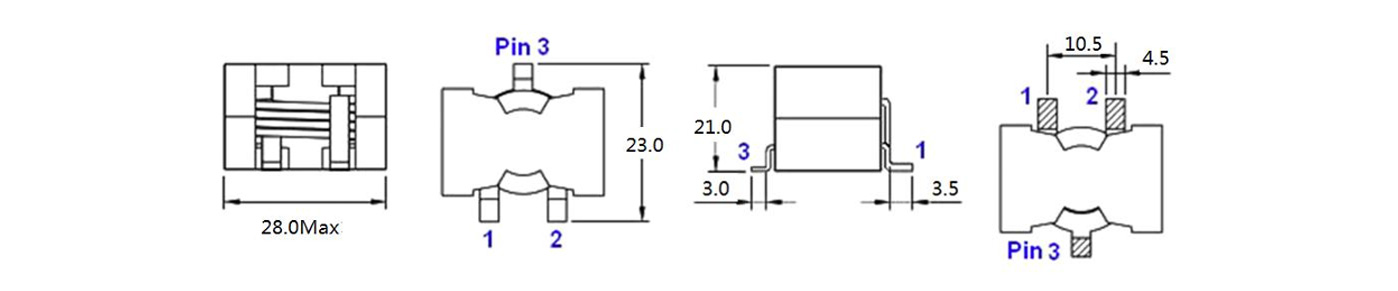

◆  尺寸参数详情见上方图片标注:

电气特性Electrical / 单位:mm

型号/NO

L(0A)

DCR(mΩ)

Irms

(Amperes)

Isat

(Amperes)

PDF

DLQ2918-2R7M
2.7
1.7
42
170
DLQ2918-3R9N
3.9
1.8
32
150
DLQ2918-4R7M
4.7
1.9
29
120
DLQ2918-6R2M
6.2
2.1
28
110
DLQ2918-7R5M
7.5
2.3
23
100
DLQ2918-100M
10.0
2.5
22
92
DLQ2918-120M
12.0
2.6
21
65
DLQ2918-220M
22.0
2.8
15
28

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
