二脚插件电感

PK0507
PK0507
二脚插件电感

结构简单、适应较宽、安装便捷

电感量范围宽、高Q值,分布电容较小

具有扼流、滤波、谐振等作用

导针结构,不易产生开路现象

主要应用于电源滤波、开关电路中的振荡组件以及电源中的扼流圈等

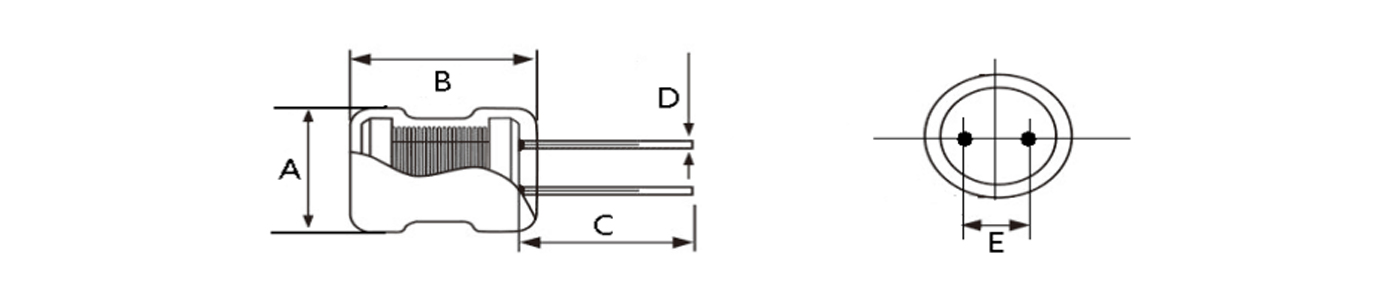

外观尺寸Outline dimension

PK0507

外观参数Exterior size / 单位:mm

◆  A(MAX):6.0   ◆  B(MAX):9.0   ◆  C(REC):13.5   ◆  D:0.6   ◆  E:2.0/2.5

电气特性Electrical / 单位:mm

型号/NO

L/uH

DCR(Ω)

Isat

(Amperes)

Irms

(Amperes)

PDF

PK0507-4R7M
4.7
0.02
2.30
3.00
PK0507-100K
10
0.04
2.4
2.65
PK0507-120K
12
0.06
2.0
2.40
PK0507-150K
15
0.07
1.9
2.35
PK0507-220K
22
0.095
1.6
1.85
PK0507-390K
39
0.17
1.4
1.55
PK0507-470K
47
0.2
1.0
1.20
PK0507-680K
68
0.30
0.45
0.65
PK0507-101K
100
0.36
0.40
0.50
PK0507-181K
180
0.54
0.30
0.35
PK0507-221K
220
0.75
0.25
0.35
PK0507-271K
270
0.89
0.20
0.30
PK0507-331K
330
1.20
0.19
0.24
PK0507-391K
390
1.35
0.18
0.22
PK0507-471K
470
1.60
0.16
0.20
PK0507-561K
560
2.10
0.15
0.16
PK0507-102K
1000
3.10
0.13
0.15
PK0507-222K
2200
7.0
0.1
0.12
PK0507-332K
3300
10.5
0.08
0.08
PK0507-392K
3900
11.00
0.07
0.08
PK0507-472K
4700
15.00
0.06
0.07

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%,N表示电感值的公差为±30%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  本产品为无铅,请采用无铅环境作业

■  Other: Our company's products are lead-free, please operate in a lead-free environment

■  在过载电流等不正常条件下,本电感产品无自我保护功能。

■  Under abnormal conditions such as overload current, this inductor product has no self-protection function.

■  贮藏温度:10℃~25℃,相对湿度:65%~85%.

■  Storage temperature: 10 ℃~25 ℃, relative humidity: 65%~85%

■  由于页面限制,更多资料请联系我司

■  Due to page limitations, please contact our company for more information
