GFDS3119
GFDS3119
数字功放电感

2合1结构缩小空间增大输出功率

低耦合,互相串扰较小

具有极好的屏蔽效果,抗电磁干扰能力强

组立式设计,结构牢固

磁路闭合,超低蜂鸣噪音

工作温度:-40℃ ~ +125℃ (包含线圈发热)。

主要应用于数字功放音频放大

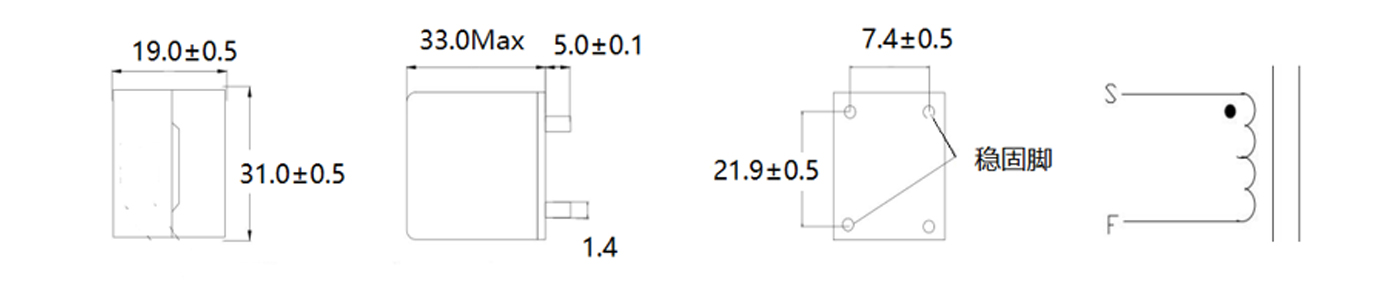

外观尺寸Outline dimension

GFDS3119

外观参数Exterior size / 单位:mm

◆  尺寸参数详情见上方图片标注:

电气特性Electrical / 单位:mm

型号/NO

L(0A)

DCR(mΩ)

Irms

(Amperes)

Isat

(Amperes)

PDF

GFDS3119-5R6M
5.6
3.6
25
60
GFDS3119-8R2M
8.2
4.2
22
56
GFDS3119-100M
10
4.9
18
44
GFDS3119-150M
15
6.5
14
32
GFDS3119-220M
22
10
9.1
24

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
