LFET 共模电感

LFET2725W
LFET2725W
LFET产品系列大功率电感

滤波时稳定,高电流承载能力

可燃性符合 UL 94 V-0

气候类别 40/115/21

工作温度:-40℃~+125℃

广泛应用交流/直流转换器、高频DC/DC转换器、LED驱动器、开关模式电源。

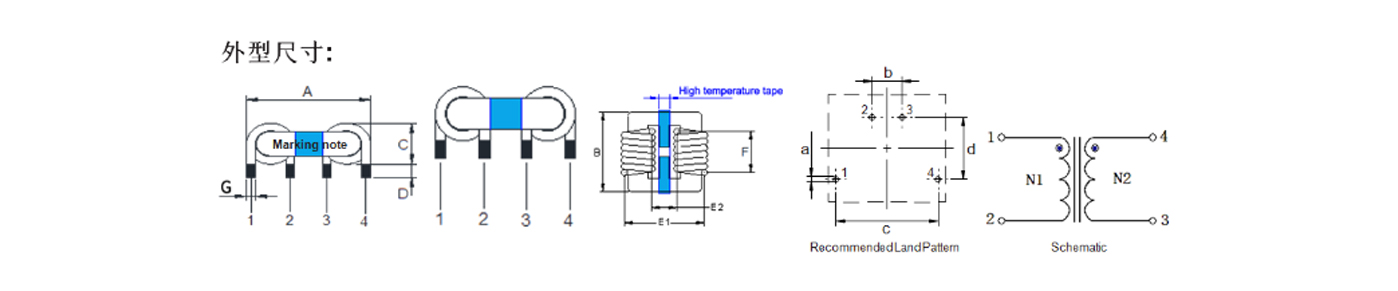

外观尺寸Outline dimension

LFET2725W

外观参数Exterior size / 单位:mm

◆  A:27.5Max   ◆  B:25.0Max   ◆  C:11.7Max   ◆  D:4.5±0.5   ◆  E1:24.8±0.5   ◆  E2:6.0±0.5   ◆  F:14.5±0.5   ◆  G:∅2.0±0.1

◆  a:Φ2.3   ◆  b:6.0   ◆  c:24.8   ◆  d:14.5

电气特性Electrical / 单位:mm

型号/NO

L(0A)

DCR(mΩ)

Irms

(Amperes)

Isat

(Amperes)

PDF

LFET2725W-121P
120
1.4
23.5
/
LFET2725W-151P
150
1.9
20
/
LFET2725W-231P
230
3.6
16
/
LFET2725W-331P
330
6
12
/
LFET2725W-451P
450
9.6
9.5
/

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
