贴片共模电感

绕线式对称双绕组结构

有效防止高频共模噪声

优异的焊接性能

工作温度:-40℃~+125℃

广泛应用于各种电子产品、多媒体设备,、高频电路场景,可有效滤除MHz级别的高频噪音

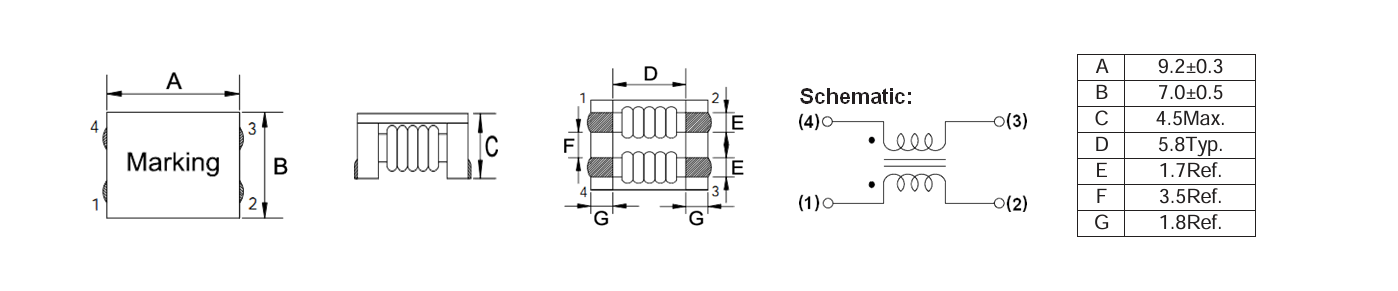

外观尺寸Outline dimension

TSCWW0950

外观尺寸参数Appearance size / 单位:mm

◆  详情请参考上方尺寸图片中标注:

电气特性Electrical characteristics / 单位:mm

型号/NO

Z(Ω)

DCR(Ω)

Idc(mA)

(Max)

额定电压(V)

PDF

TSCWW0950-301
230
6.0
6.0
80
TSCWW0950-601
500
8.0
5.5
80
TSCWW0950-701
550
9.5
5.0
80
TSCWW0950-102
800
13.0
4.0
80
TSCWW0950-202
1750
25.0
3.0
80
TSCWW0950-302
2700
45
2.0
80

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
