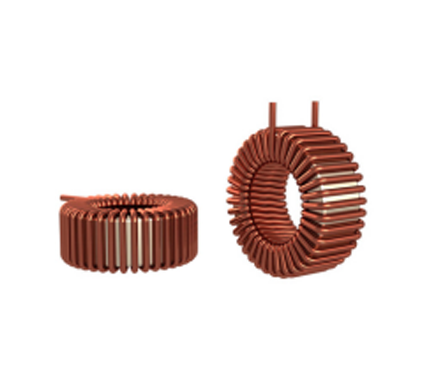

铁粉芯磁环电感

TC44-26
TC44-26
铁粉芯磁环电感

高工作频率、损耗小

低电流噪声有效提升信号传输质量

使用寿命长、耐磨损、能承受恶劣工作环境

工作温度:-40℃~+125℃(包含线圈发热)

广泛应用于车载、电力、冶金等重工业领域

外观尺寸Outline dimension

TC44-26

外观参数Exterior size / 单位:mm

电气特性Electrical / 单位:mm

型号/NO

L/uH

DCR(Ω)

Max

Isat

(Amperes)

Irms

(Amperes)

PDF

TC44-26
/
/
/
/

注释

■  K表示电感值的公差为±10%,M表示电感值的公差为±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有数据基于环境温度25℃条件下测试

■  All data is based on testing at an ambient temperature of 25 ℃

■  本页面未能录入全部或最新的数据,请您在订购前向本公司咨询精准参数及样品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  测试条件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存条件:温度 5~40°C,相对湿度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  产品储存期不建议超过 12 个月

■  The storage period of the product is not recommended to exceed 12 months
